High Voltage Cables
Shielded and unshielded high voltage cable for use in electrostatic applications according to EN 50176 / EN 50177.
| HV-Cables |  |
 |
 |
 |
 |
|---|---|---|---|---|---|

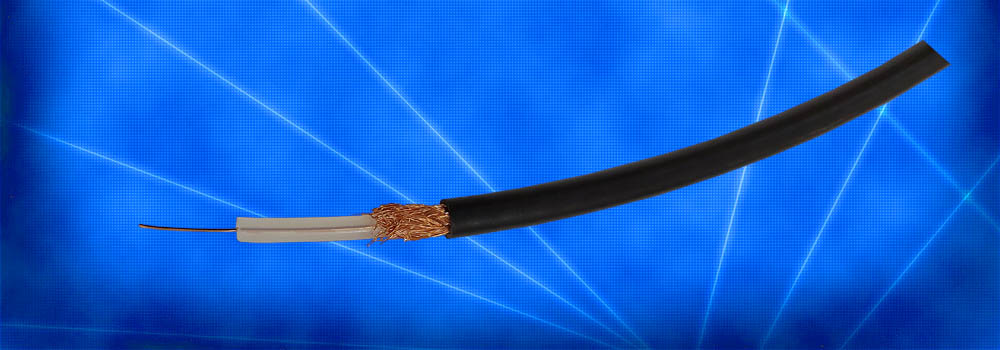

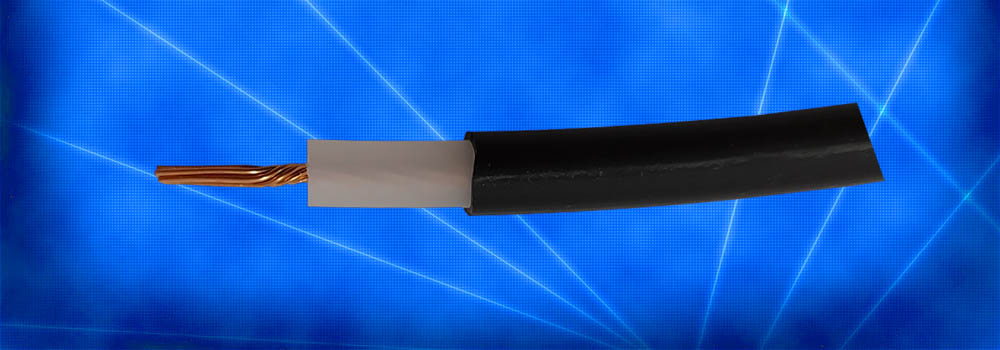

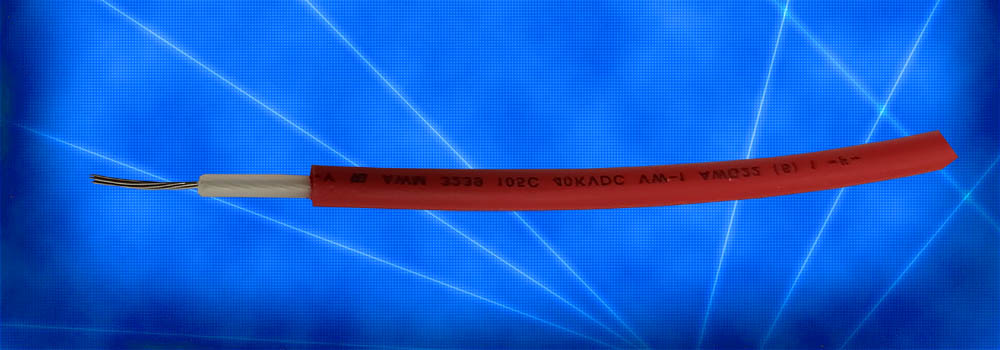

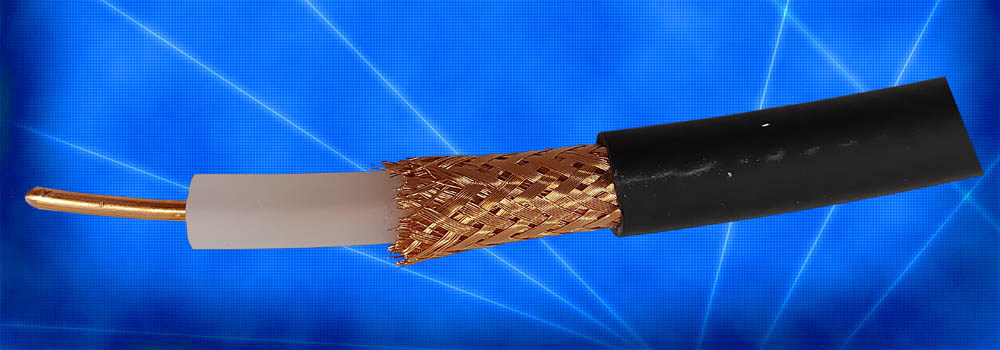

| Type | HVC-40M-02 | HVC-50M-03 | HVC-100M-03 | HVC-100M-04 | HVC-150M-03 |
| Shielded | no | yes | yes | no | yes |
| Rated Voltage | 40 kV DC | 50 kV DC | 100 kV DC | 100 kV DC | 150 kV DC |
| Test Voltage | 60 kV DC | 60 kV DC | 150 kV DC | 120 kV DC | 180 kV DC |
| Insulation | IRRAX | PE | PE | PE | PE |
| Outer Diameter | 4.2 mm | 6.2 mm | 10.1 mm | 9.0 mm | 13.8 mm |
| Operating Temperature | -25 to +85°C | -25 to +70°C | -25 to +70°C | -20 to +70°C | -20 to +70°C |
| Data Sheet | (en) (de) | (en) ; (de) | (en) (de) | (en) (de) | (en) (de) |
Interested?
Then contact us without obligation. Click here to send email:
